100mm Sliding - Double Glazing

The SDG Slide range of doors and windows offers homebuilders the perfect alternative for patios; allowing you to completely slide open and expand your internal space to your specific architectural requirements in either double track or triple track options. This design also allows unobstructed views of the exterior environment and entertainment areas. The SDG Sliding system provides a more open feeling, rather than an enclosed space, with its glass panels giving it the effect of a SLIDING GLASS WALL instead of a solid separating element. This sliding system also utilizes less internal spaces, requiring only the frame width instead of internal swing space as in the case of conventional swing door and windows. The Lumin range, in addition to giving you the advantage of space, light, and sophisticated design, also has the added advantage of providing allowances for double glazing insulation for improved thermal efficiency and external sound reduction up to 70%, giving your living space a lighter and more serene ambiance.

Features

  • Designed for high performance
  • Suited to almost any commercial or architectural application
  • Extended product options for large configurations
  • Tested for air, water leakages and wind resistance
  • High performance roller hardware for durability
  • Standard and multi-stack configurations of up to 4 panels
  • Double Glazing capability.

Available in a range of finishes and custom designs.
Compatible with the full range of international standard locking systems.

Product Specification

Other Resources

1

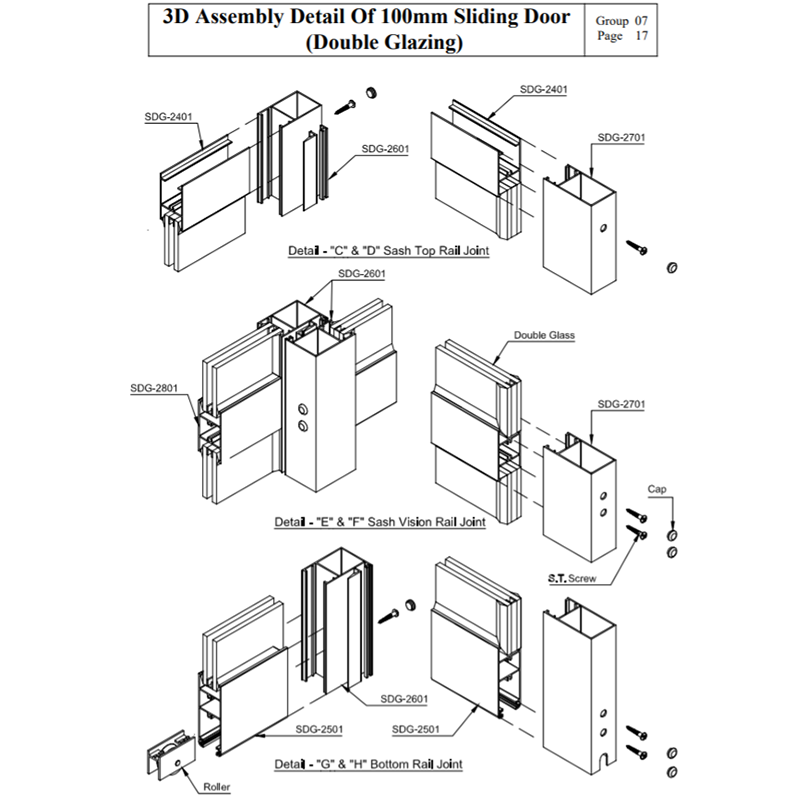

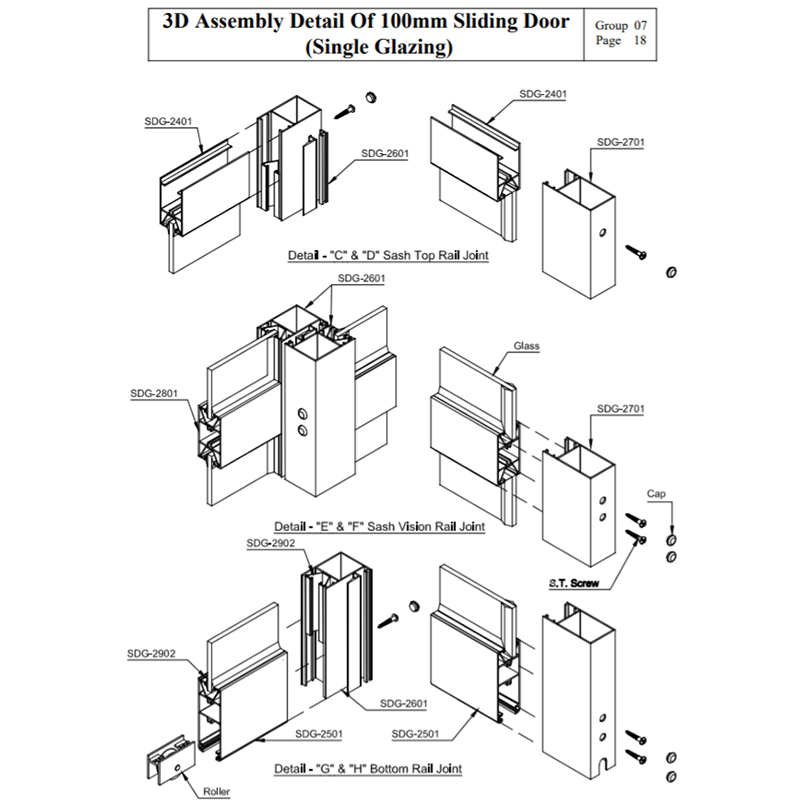

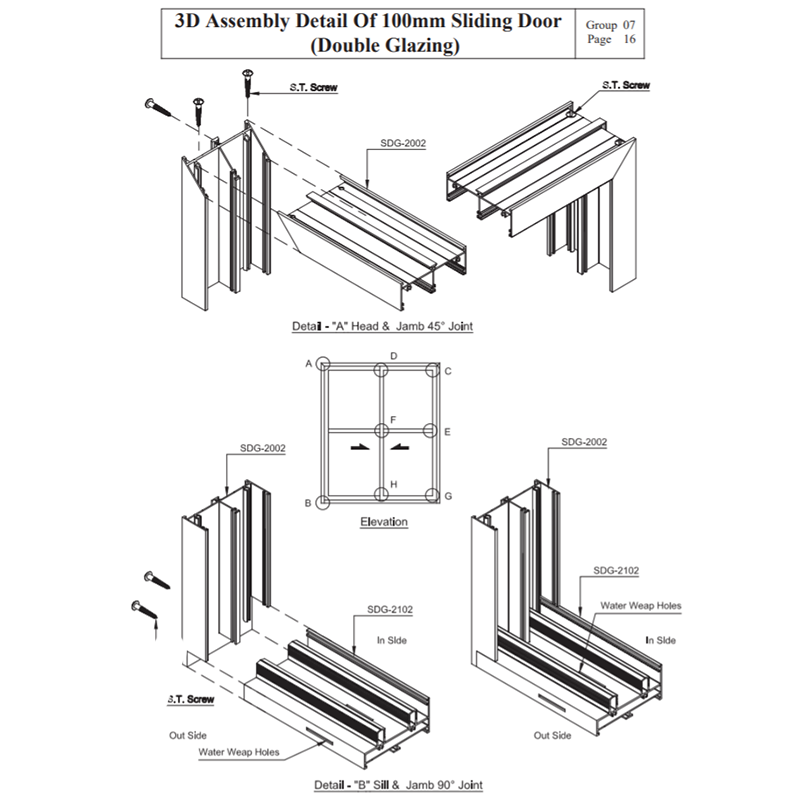

3D Drawings - Sliding I

2

3D Drawings - Sliding II

3

3D Drawings - Sliding III

4

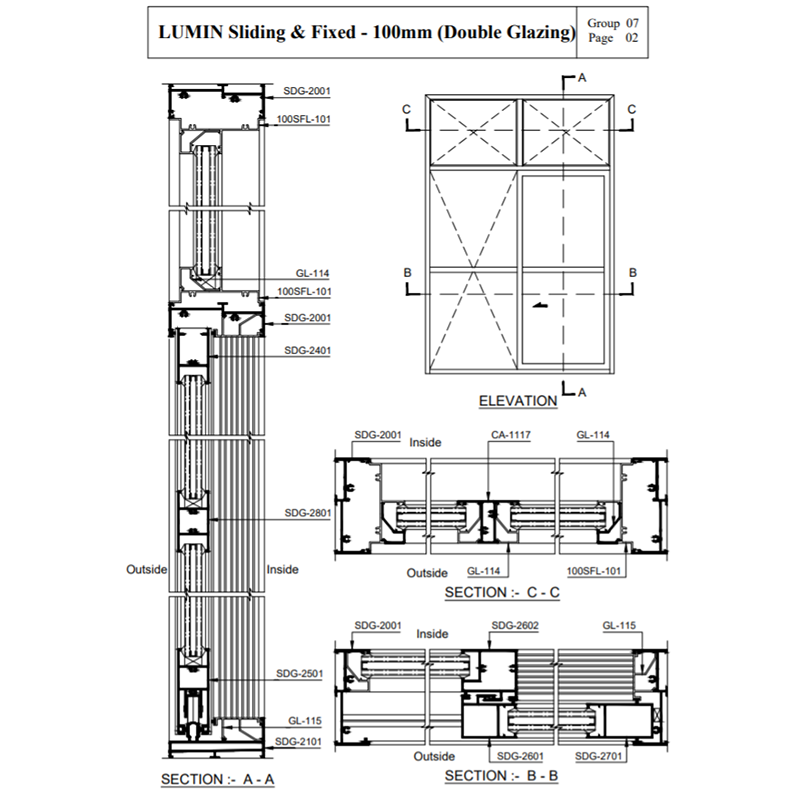

LUMIN Sliding & Fixed 100mm Elevation

5

LUMIN Sliding & Fixed 100mm Elevation

6

LUMIN Sliding & Fixed 100mm

7

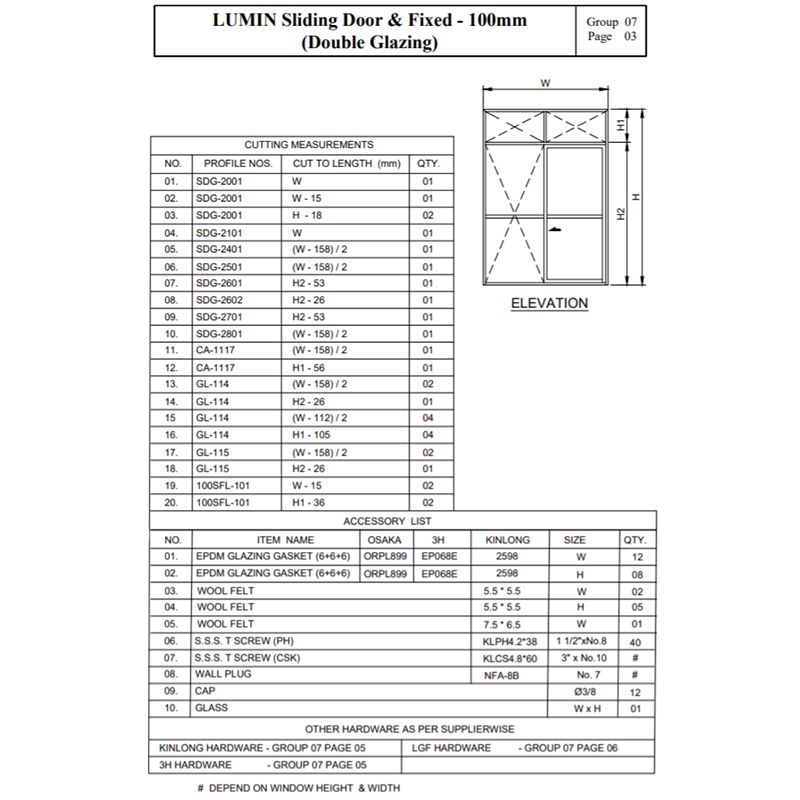

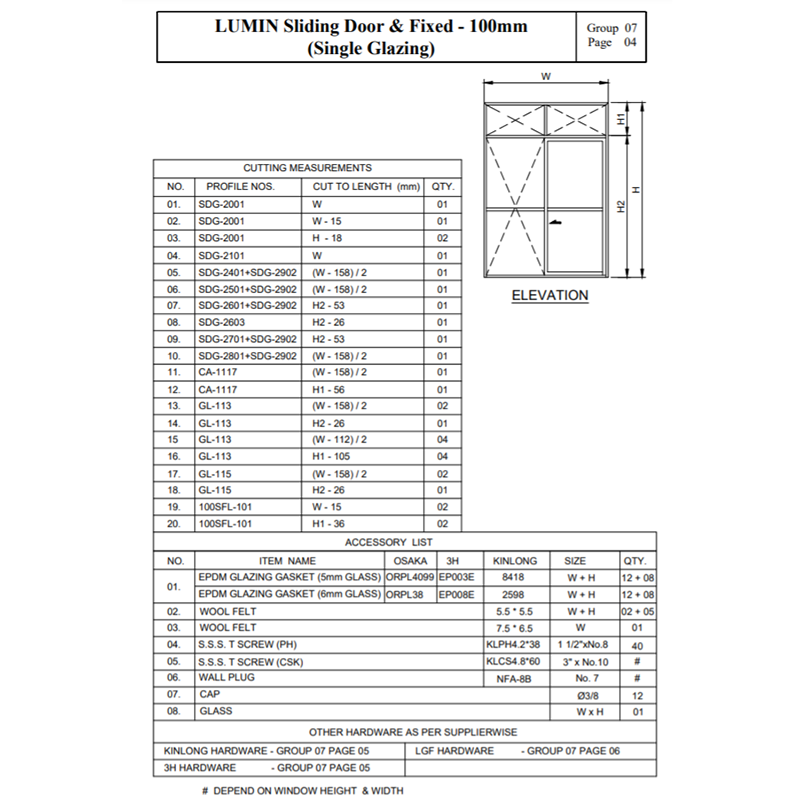

LUMIN Sliding Door & Fixed 100mm Cutting List

8

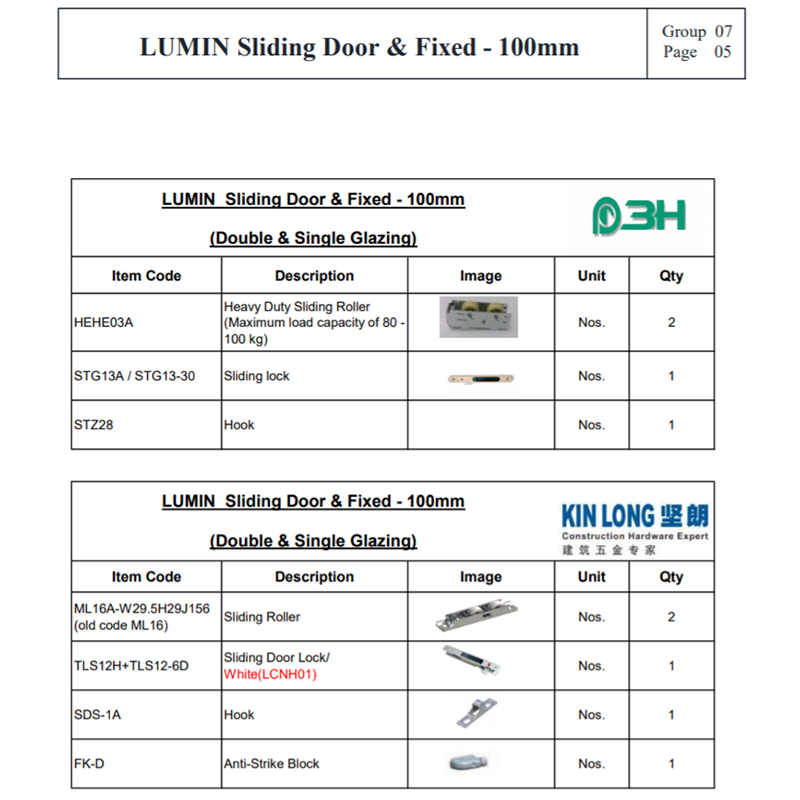

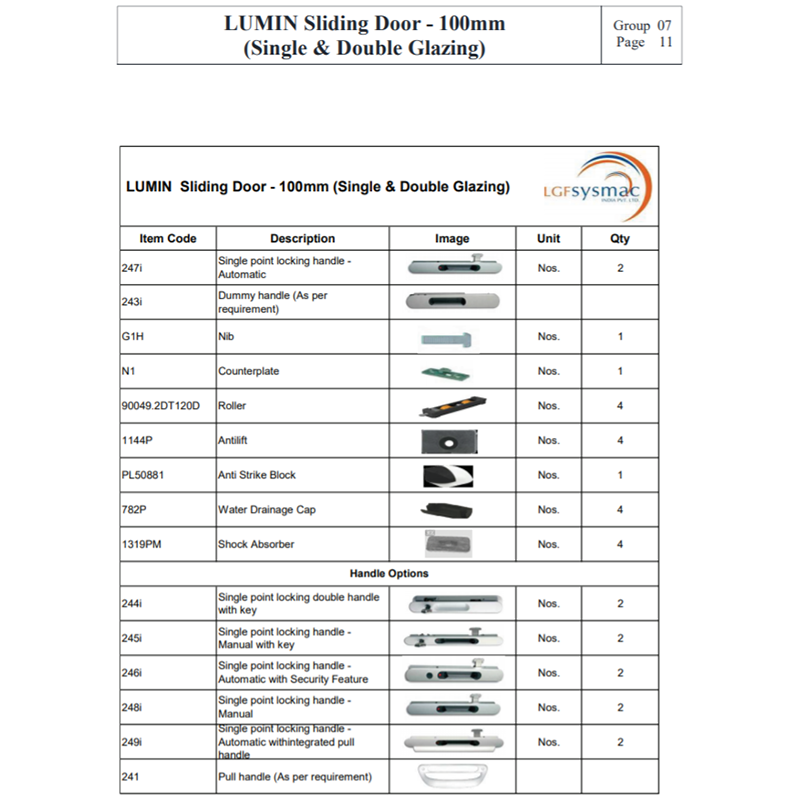

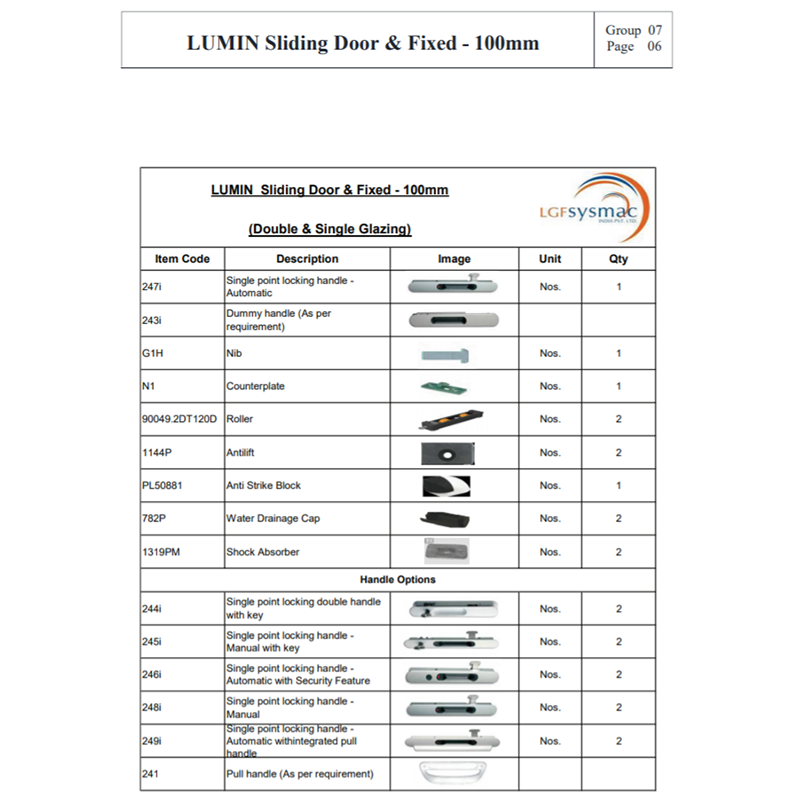

LUMIN Sliding Door & Fixed 100mm Accessory List

9

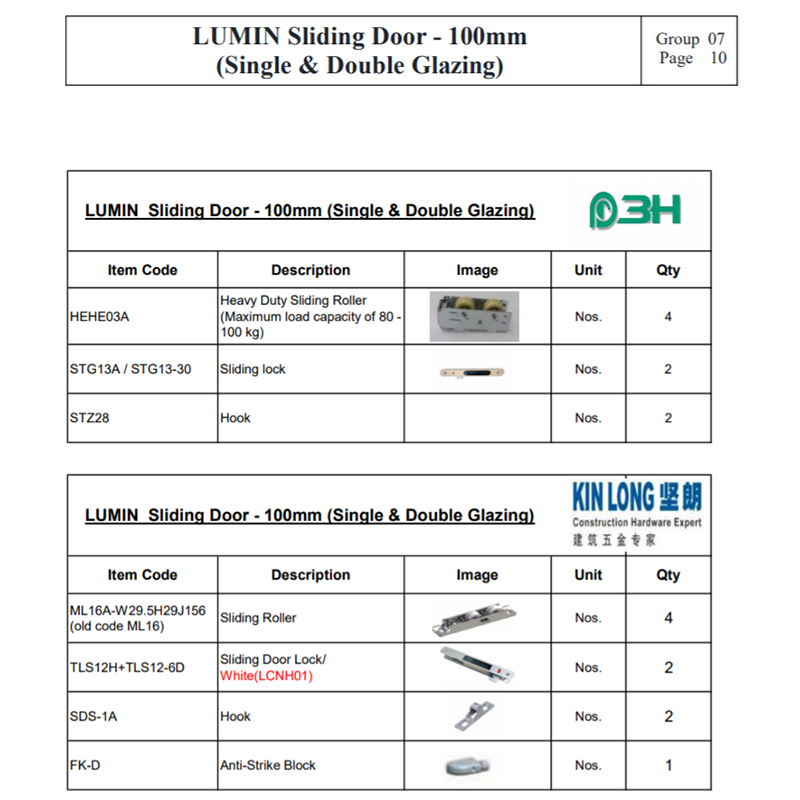

LUMIN Sliding Door & Fixed 100mm Accessory List II

10

LUMIN Sliding Door & Fixed - 100mm Evevation

11

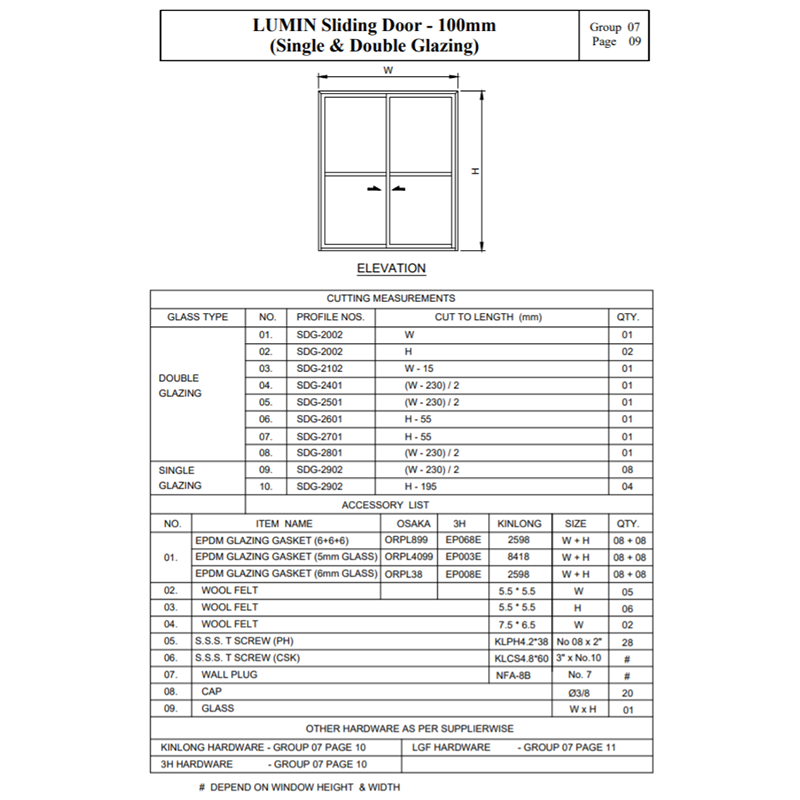

LUMIN 2 Track & Fixed Sliding Door - 100mm Cutting List

12

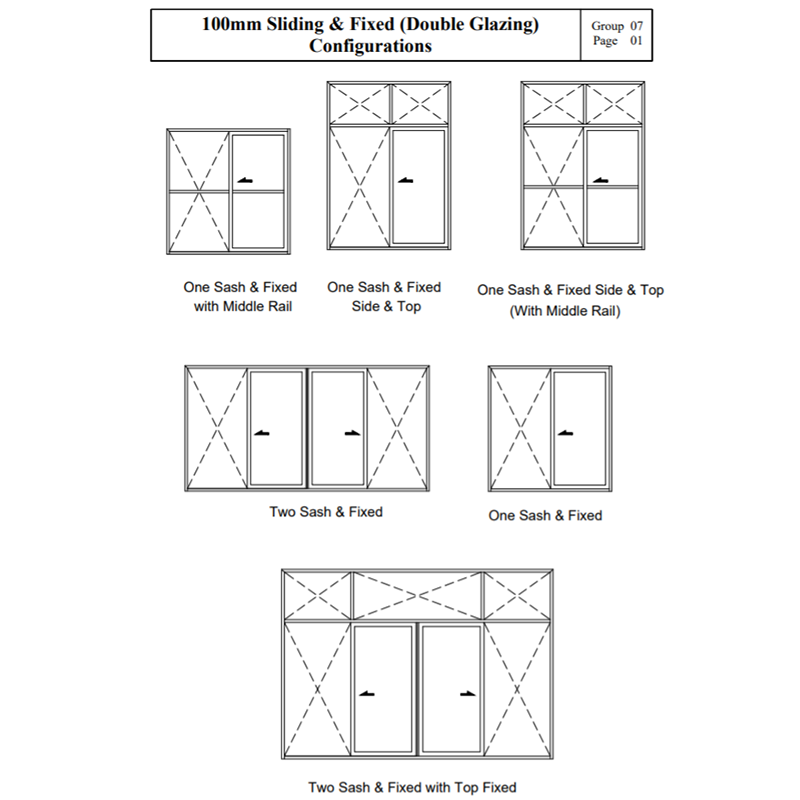

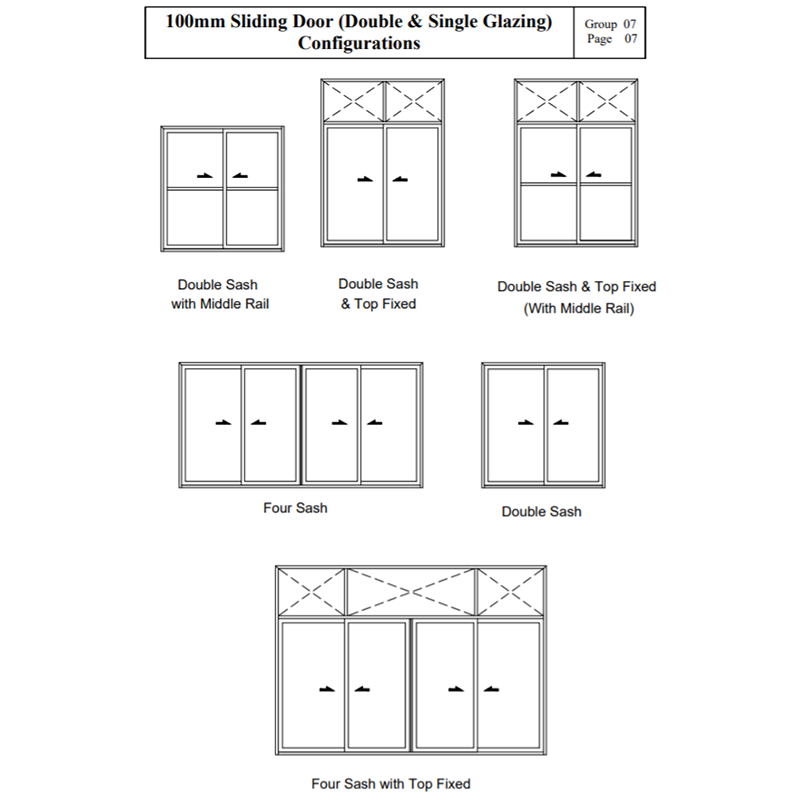

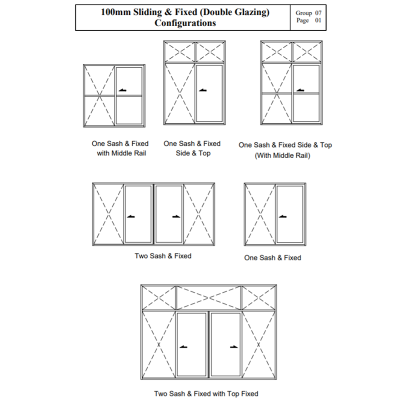

100mm Sliding & Fixed Configurations

13

100mm 2 Track & Fixed Configurations

14

100mm 2 Track & Fixed Configurations II

15

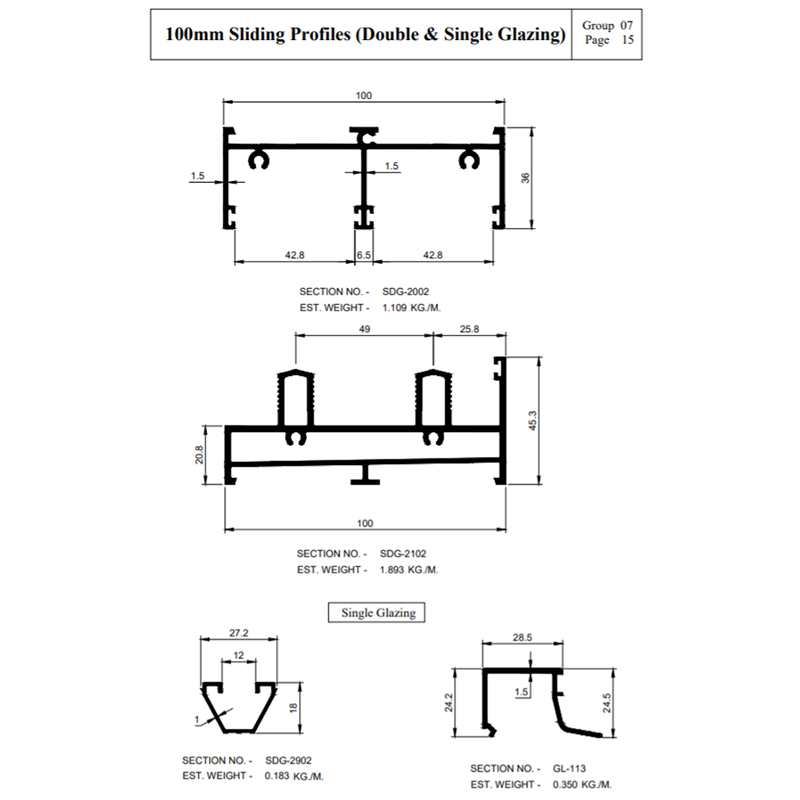

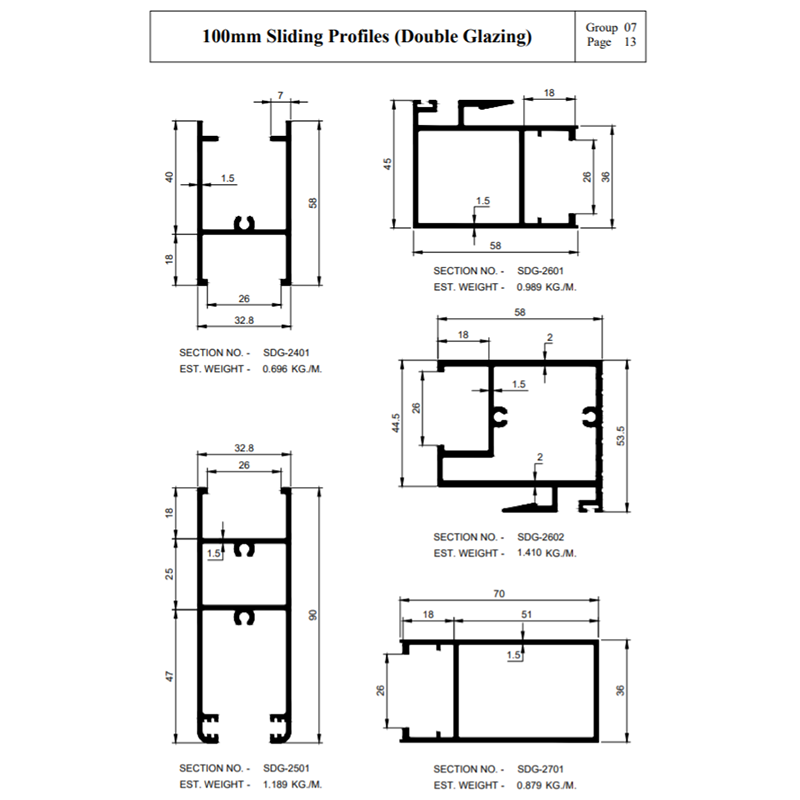

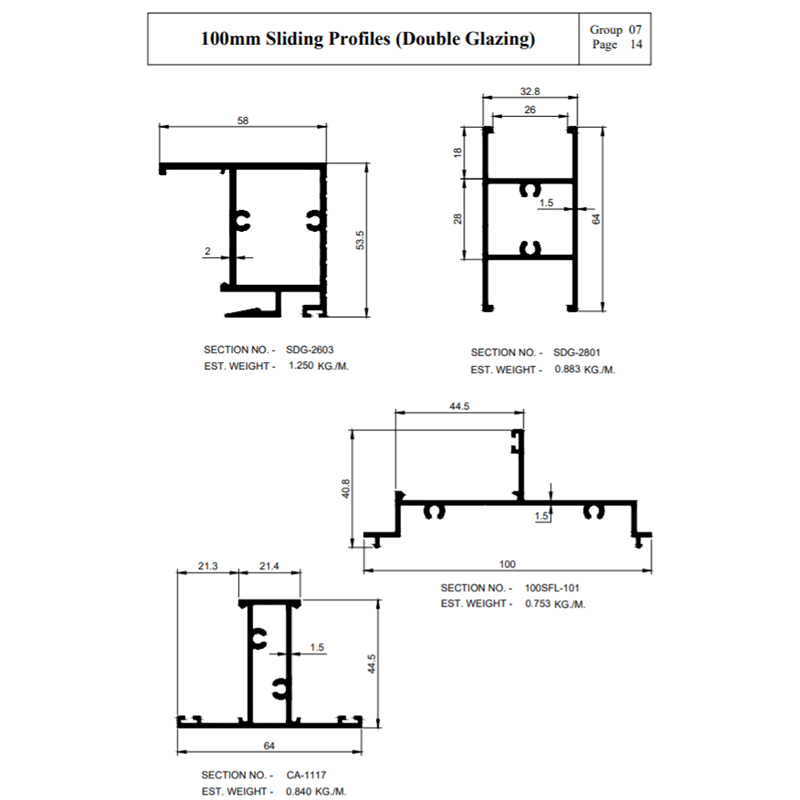

100mm Sliding Profiles

16

100mm Sliding Profiles II

17

100mm Sliding Profiles III

18

100mm Sliding Profiles IV
