500 Series

Choose Our Products & Get Best

Curtain Wall or Façade is a very significant and important area of a building giving an elegant and classy look to the building in addition to support the structure of it. Therfore, its essential to have two main qualities of the curtain wall or façade, able to give the style customers looking for and provide the strength for longevity. Alumex CW 500 tested system has been designed to fulfill both these requirements. In addition, this series has the capability to save the energy to a greater level due to usage of weather resistant polymid breaking system. A key feature of the CW 500 tested system is the inclusion of tested building and mullion brackets, allowing the system to be installed as a fully tested system without having to independently engineer brackets for each project.Another added feature is the ability to integrate sun-shading directly into the frame without sacrificing structural or water performance. The openable parallel arm window system is another value addition of Alumex CW 500 tested system. The parallel arm window combined together with the CW 500 series is safer than the conventional windows and provide an unobstuct view to the users. Users are able to have a wide range of glazing options due to the facilities inbuilt with the CW500 system. Coupled with both double and single glazed capabilities this curtain wall is the ideal aluminium glazing system for durable & modern projects. Glass will be fixed on a specially designed profile giving the opportunity for the system to have large panel option without any risk.

Product Specification

Other Resources

abc-163

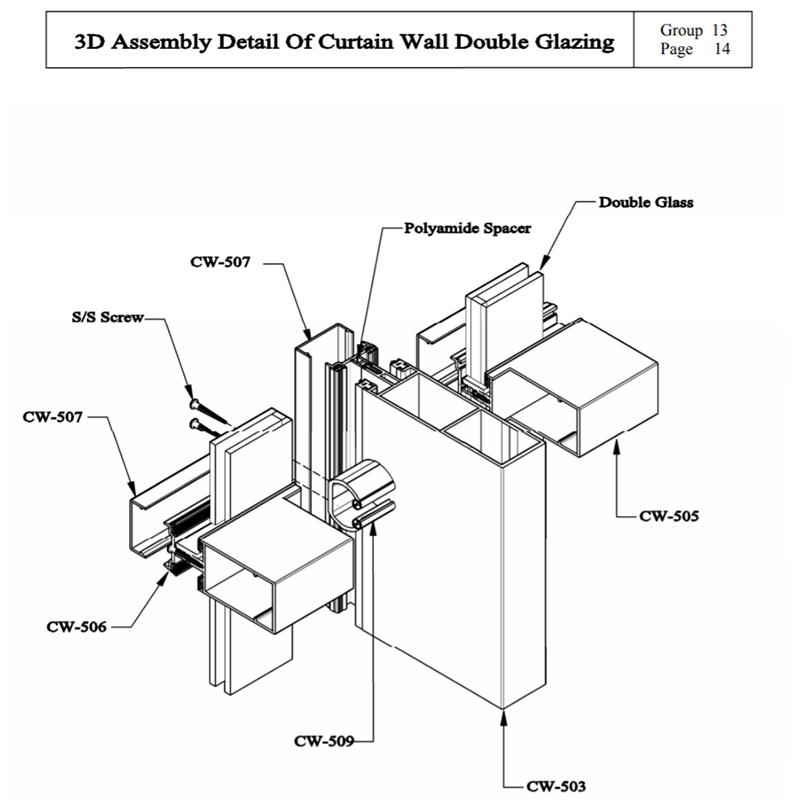

Assembly Details - 3D Assembly Curtain Wall

abc-164

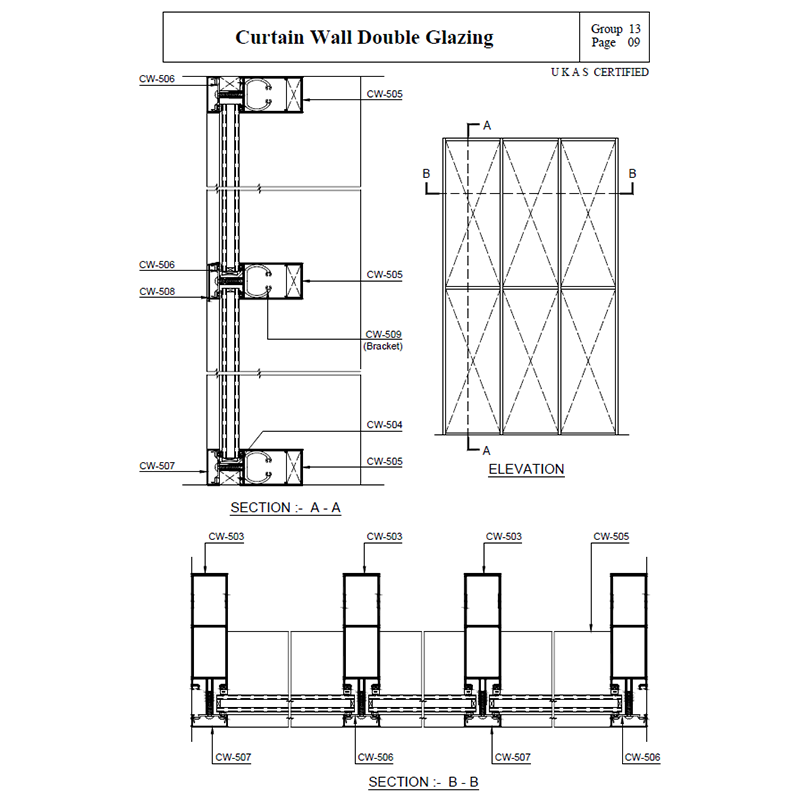

Assembly Details - Curtain Wall Double Glazing 1

abc-165

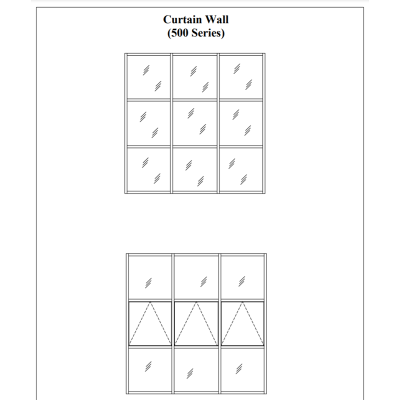

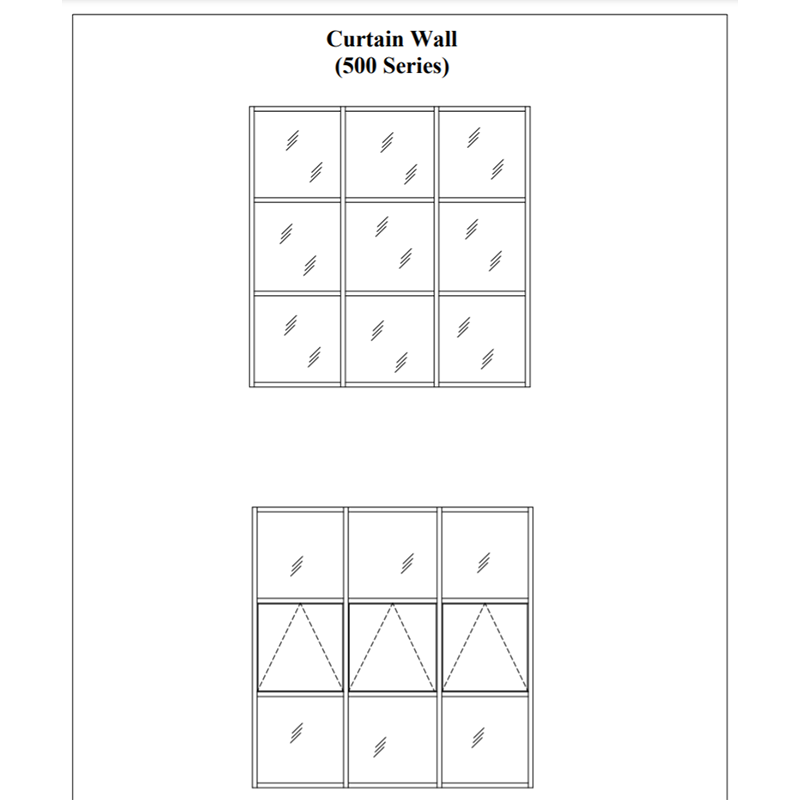

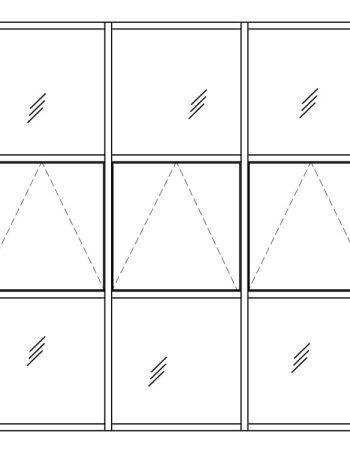

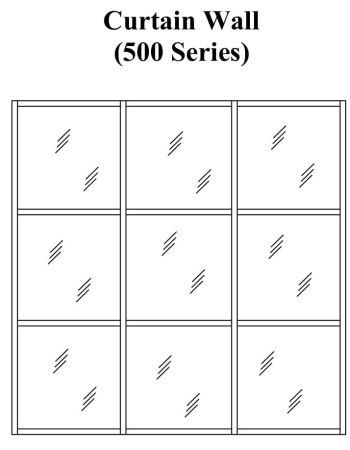

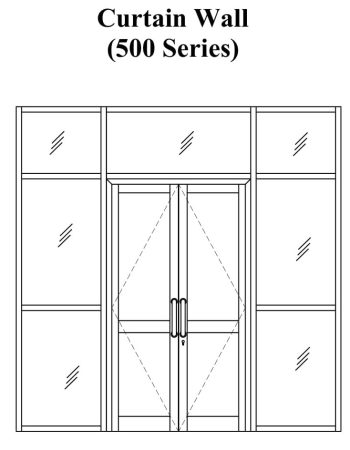

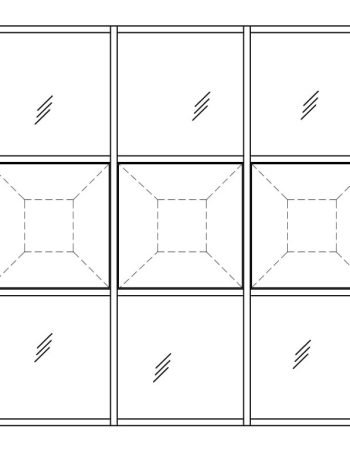

Configurations - Curtain Wall 500 Series 1

abc-166

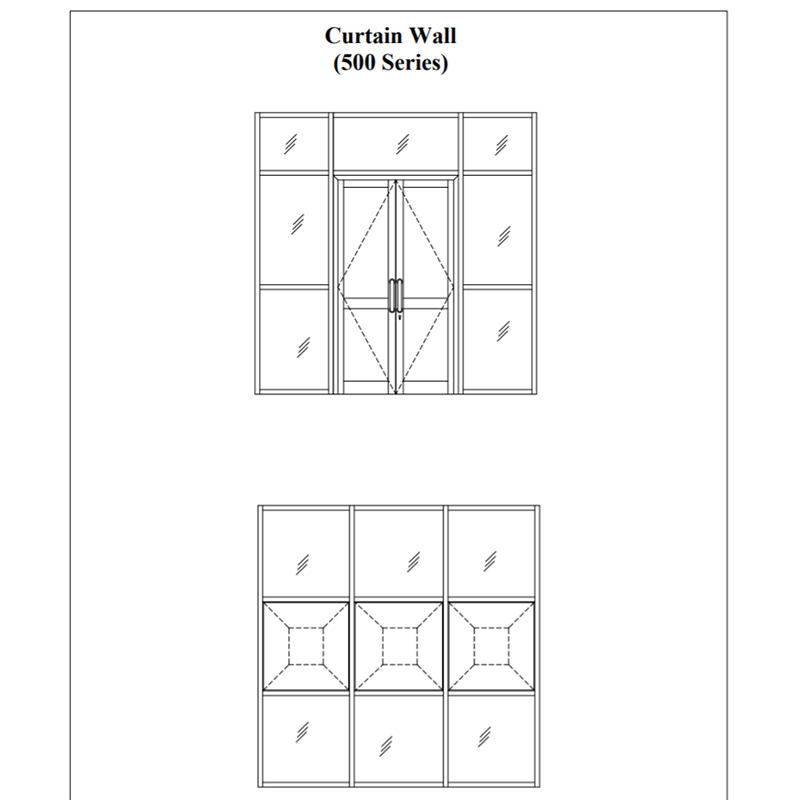

Configurations - Curtain Wall 500 Series 2

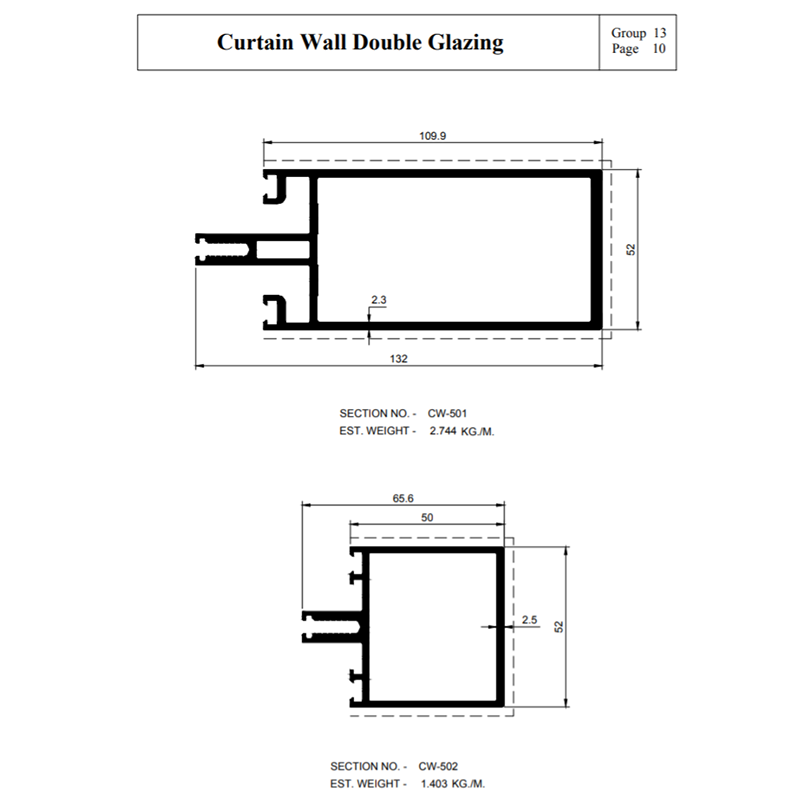

abc-167

Profiles - Curtain Wall Double Glazing 1

abc-168

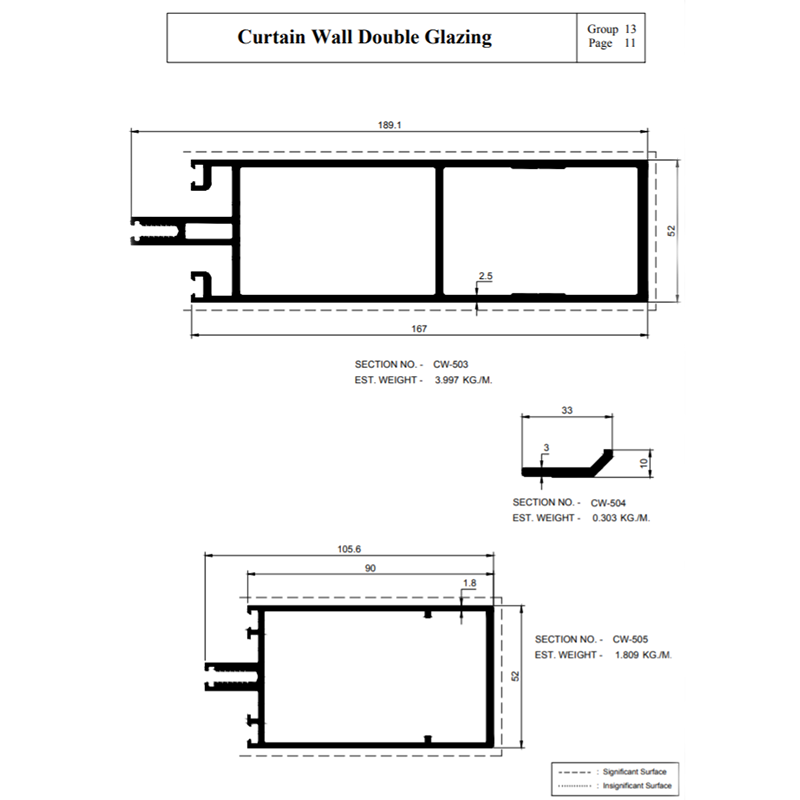

Profiles - Curtain Wall Double Glazing 2

abc-169

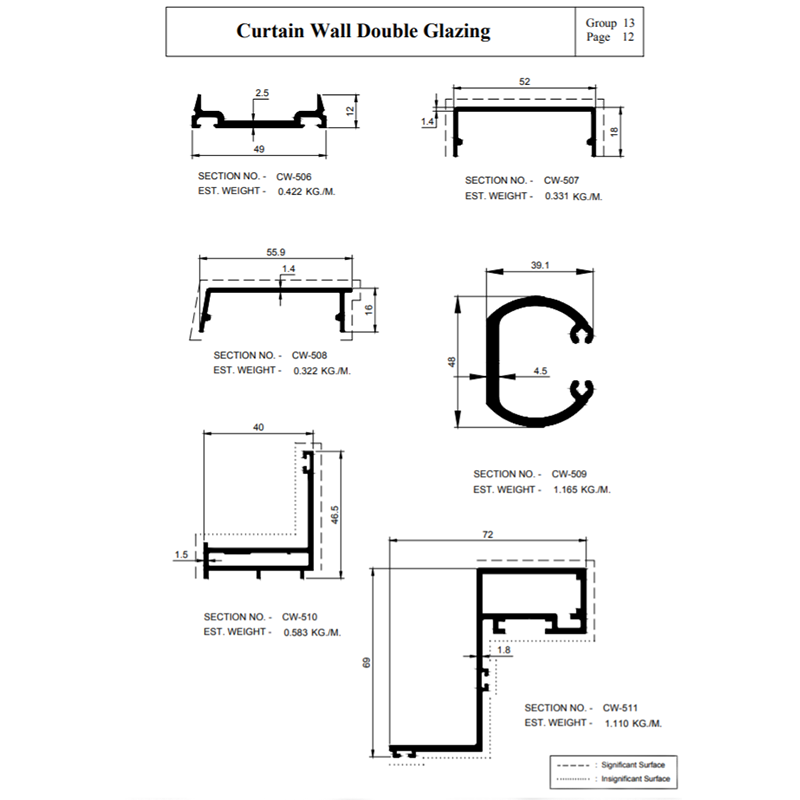

Profiles - Curtain Wall Double Glazing 3

abc-170

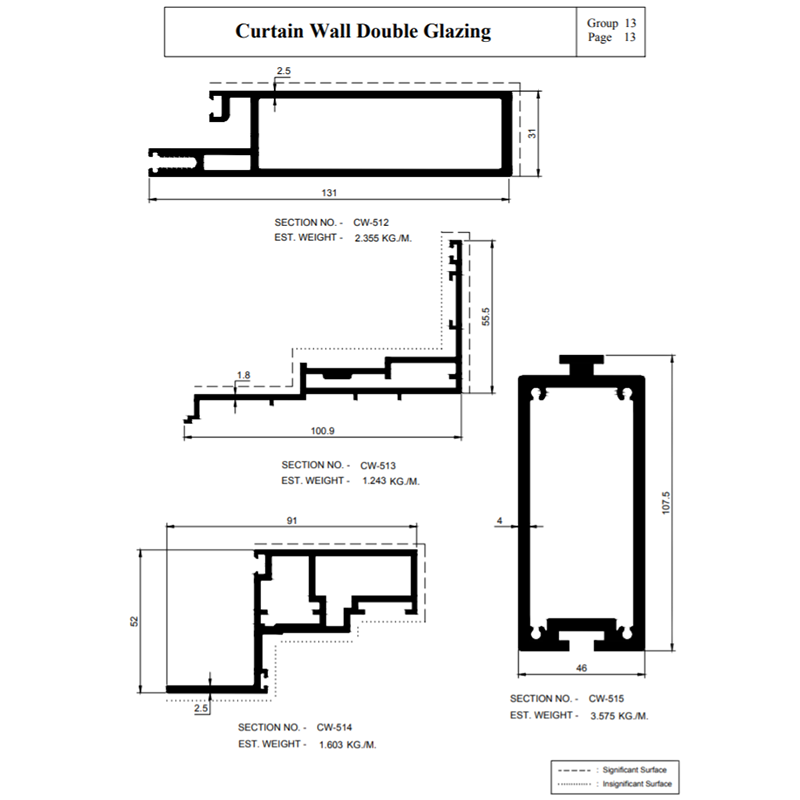

Profiles - Curtain Wall Double Glazing 4
