The Engineering Case for Wood-Effect Aluminium Over Timber
Timber has been a default material in architectural finishes for centuries. But for facades, window frames, cladding, and interior fit-outs, aluminium with a wood-effect finish is increasingly the smarter engineering and commercial choice. WoodEx, Alumex’s wood-effect aluminium finish, delivers the warmth and character of timber with none of its structural or maintenance liabilities.
What Is WoodEx?

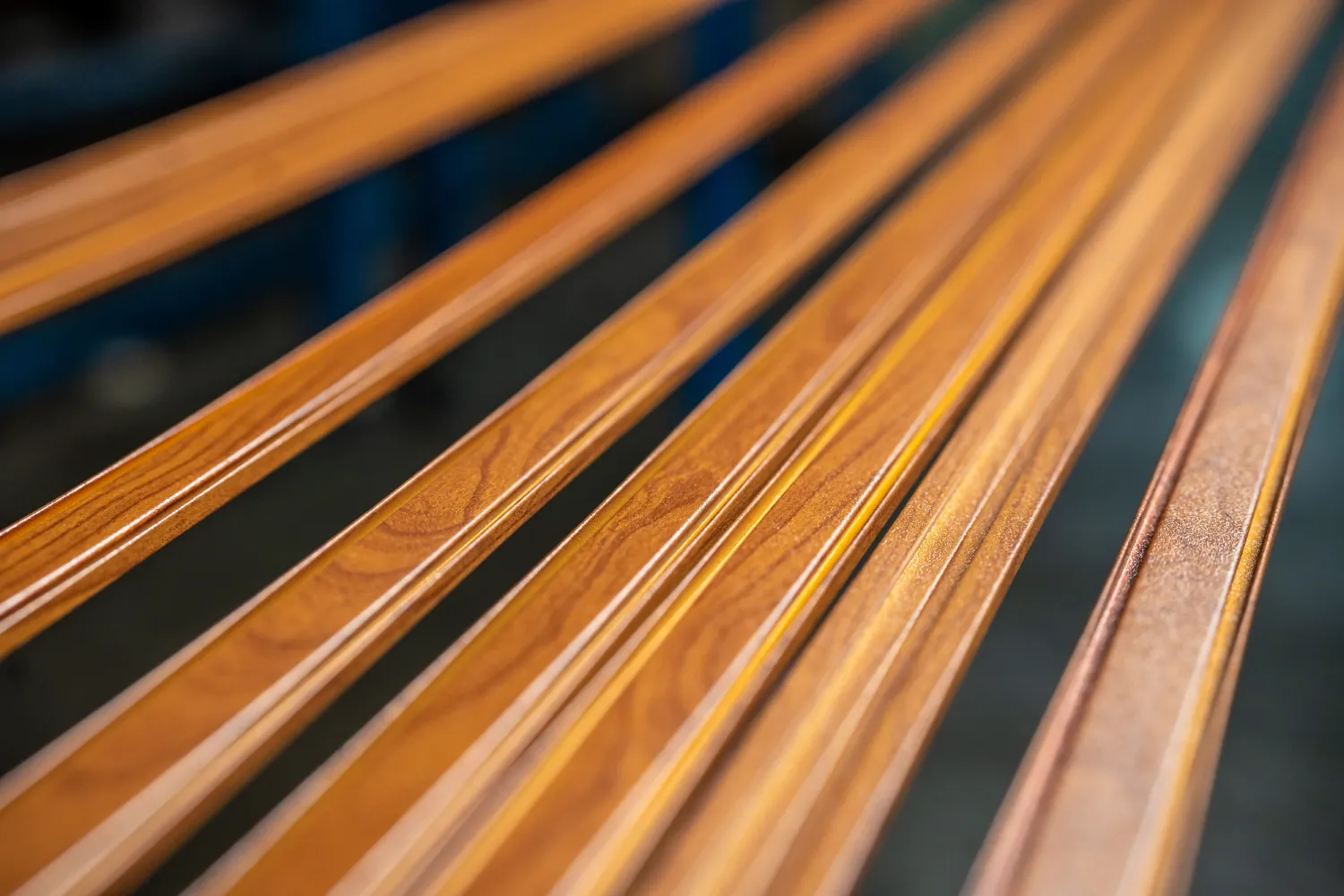

WoodEx is a sublimation-based wood-effect finish applied to aluminium extrusion profiles. A photographic wood-grain transfer film is wrapped around the pre-treated, powder-coated profile and heat-cured in a controlled oven. The result replicates the visual texture and grain of natural timber in species including Oak, Teak, Walnut, Mahogany, and Pine, on an aluminium substrate.
The sublimation process transfers the image into the powder coating layer, creating a UV-stable, wear-resistant surface that maintains its appearance throughout its service life.
The Problems with Specifying Real Timber
|
Risk Factor
|
Real Timber
|
WoodEx Aluminium
|
|---|---|---|
|
Warping and cracking
|
High in tropical/humid climates
|
None, aluminium is dimensionally stable
|
|
Rot and fungal decay
|
High without treatment
|
Not applicable
|
|
Maintenance cycle
|
Every 2-5 years (painting/oiling)
|
None required
|
|
Fire performance
|
Combustible
|
Non-combustible aluminium substrate
|
|
Colour consistency
|
Natural variation, fades unevenly
|
Consistent across production batches
|
|
20-year cost
|
High (maintenance + replacement)
|
Low (minimal maintenance)
|
|
Sustainability
|
Deforestation risk
|
100% recyclable aluminium
|
Where WoodEx Performs Best
Exterior Facades and Cladding
WoodEx profiles maintain their appearance and structural integrity in high-UV, high-humidity environments without any surface treatment programme. Natural timber requires intensive maintenance schedules, and most engineered wood products are not dimensionally stable in tropical or coastal climates.
Window and Door Frames
Timber window frames are particularly vulnerable to warping in tropical climates, causing operational problems and seal failure. WoodEx aluminium frames provide the wood aesthetic with the dimensional precision and weather sealing performance of aluminium, a combination timber simply cannot match.
Hospitality and Interior Fit-Out
Five-star hotels, high-end retail, and luxury residential developments increasingly specify WoodEx for ceiling fins, wall cladding, reception counters, and feature elements. The ability to specify consistent grain and tone across an entire fit-out, and to replace individual elements identically years later, is a significant advantage over natural timber.
Pergolas and External Structures
Pergolas, louvred roofs, and external shade structures are one of WoodEx’s strongest applications. The combination of aluminium’s structural strength, excellent resistance to UV and rain, and the visual warmth of a wood-grain finish creates outdoor structures that perform well for decades without the maintenance demands of timber alternatives.
The Sustainability Advantage
Aluminium is infinitely recyclable. At end of life, WoodEx profiles can be fully recovered and re-smelted without loss of material quality. This is not true of timber, particularly treated or engineered timber products which often cannot be recycled. For projects targeting LEED, BREEAM, or Green Star credits, specifying aluminium over timber, particularly low-carbon aluminium, can contribute to Embodied Carbon and Materials credits within those rating systems.

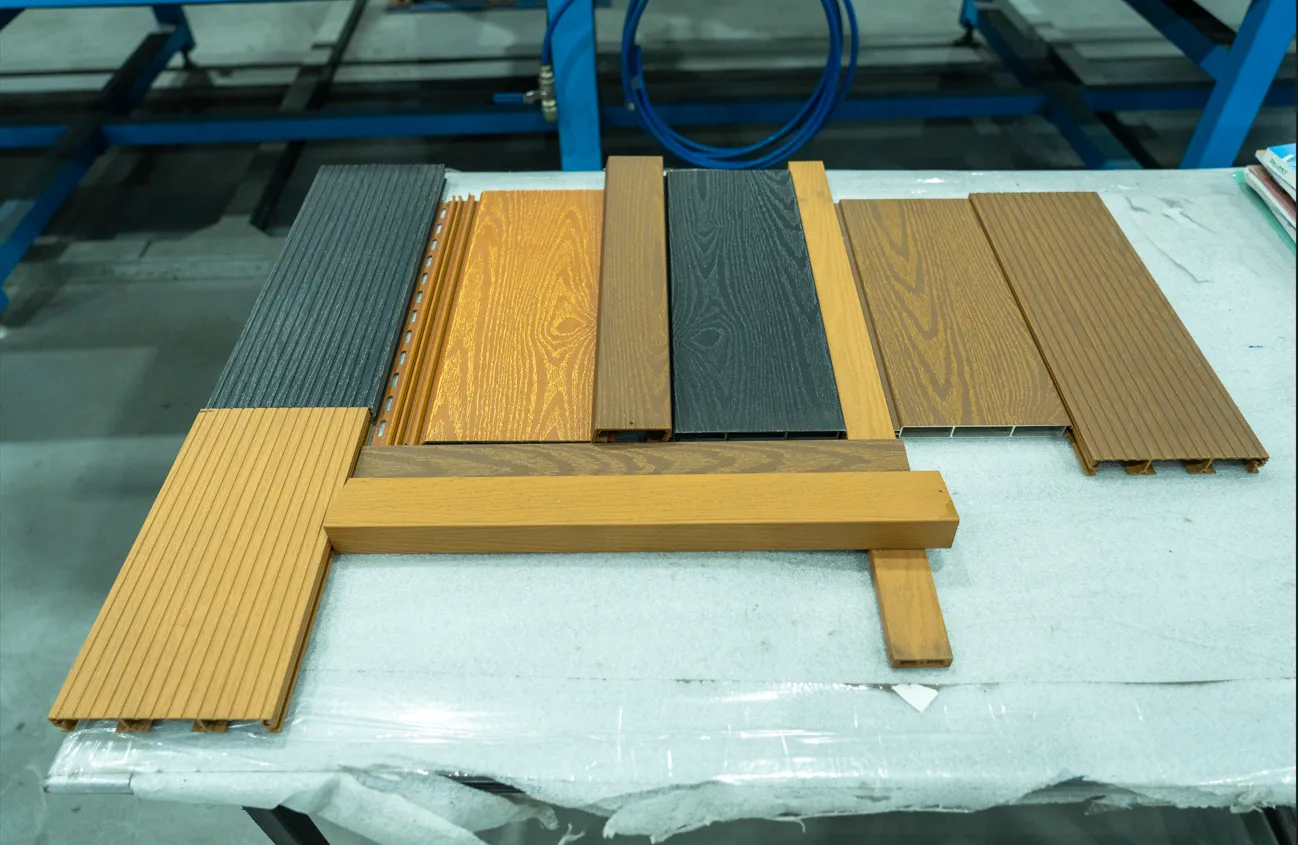

Available WoodEx Species and Profiles
WoodEx is available across Alumex’s full range of architectural extrusion profiles. Species options include Light Oak, Dark Oak, Teak, Mahogany, Walnut, and Pine, with custom species options available for large projects.
